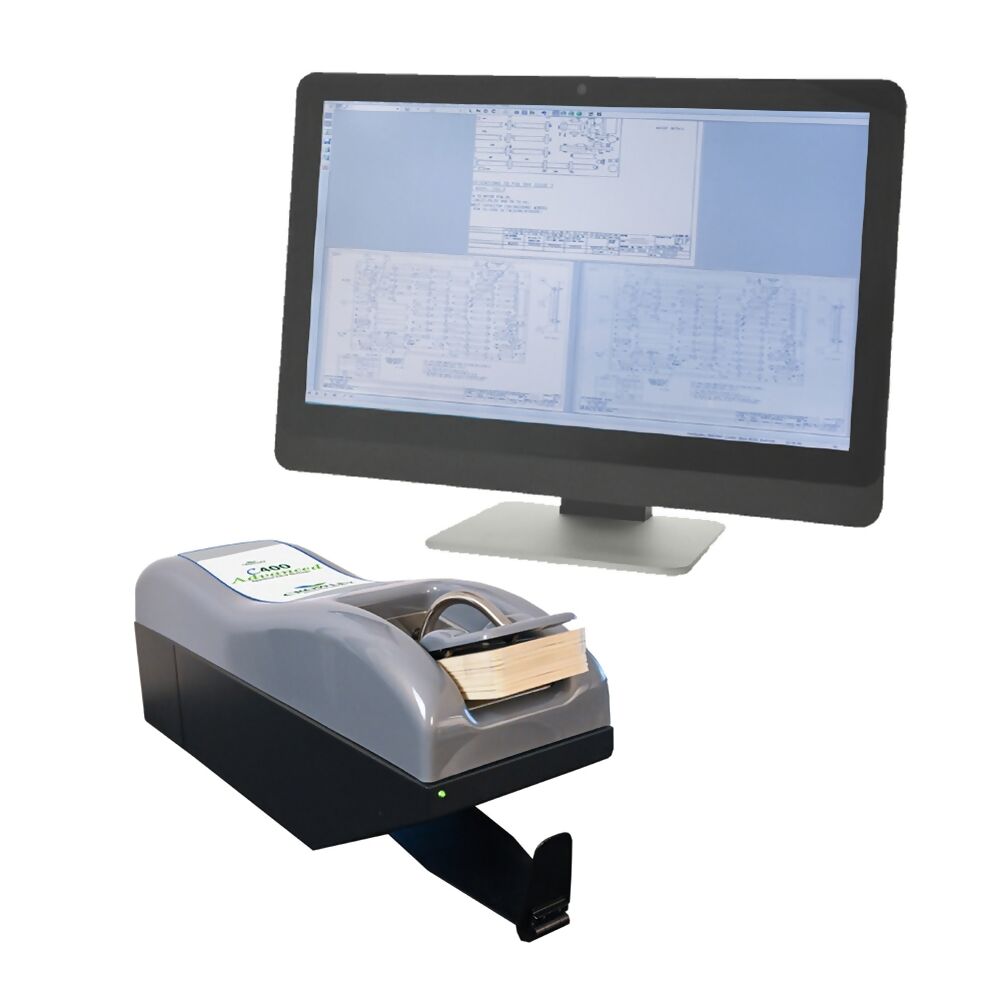

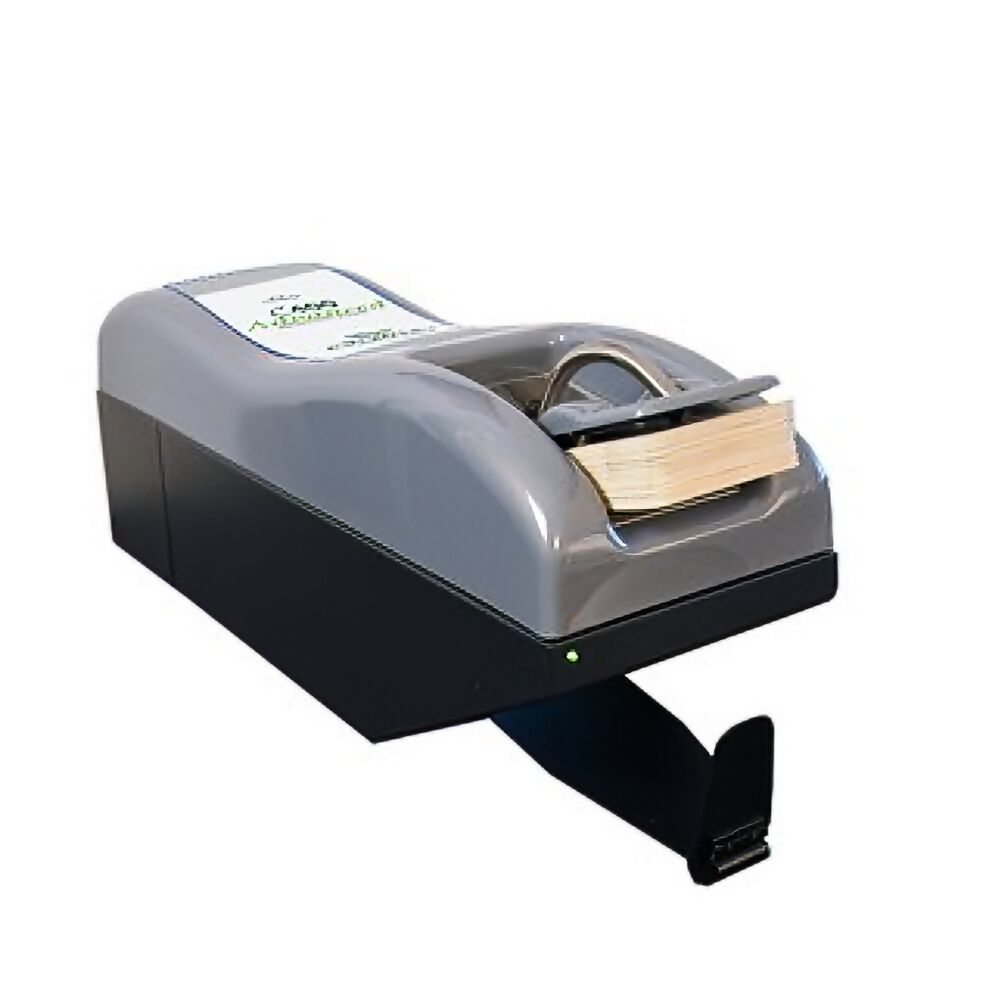

The C400 Advanced Aperture Card Scanner provides accurate, high-volume conversion of aperture cards to those in the manufacturing, engineering and nuclear fields.
C400 Advanced v Previous Models
The latest model, C400 Advanced, utilises a new camera system, larger input hopper and improved lighting source to offer fast, high-resolution digitisation of 35mm images and Hollerith data from aperture cards.
Key Features
- Auto feeder with a capacity of 300 cards
- Enhanced camera & light source
- Excellent image quality and clarity
- Affordable
- Auto White Balance (AWB)
- High- speed USB connectivity
- Simple and effective interface
- On-demand and batch scanning modes included as standard feature
- Hollerith (punch) data automatically read, if present & used to select drawing sizes and file names
- Save both bitonal & grayscale images from one single scan.
- C400 Advanced software allows resizing, enhancements and other image editing to take place without having to rescan the media.
Speed*
Up to 400 cards per hour (200 dpi)
Up to 350 cards per hour (400 dpi)
Up to 300 cards per hour (600 dpi)
File Formats (bi-tonal)
TIFF, CALS, PNG & PDF
File Formats (grayscale)
JPEG, BMP, RAW TIFF, PNG and PDF
The only production aperture card scanner on the market, the C400 Advanced provides even more image quality, ease-of-use and speed for high-volume card conversions using an automatic feed system that can scan batches of 300 cards unattended – double the capacity of the previous model – or can be manually fed for on-demand card capture. Advanced image enhancement and editing tools are included, adding versatility and ease to this aperture card scanner. Once scanned, the data from the aperture cards can be accessed instantly for viewing, printing, email, distribution or storage. Aperture card readers allow for the easy digitisation of this valuable medium.
*Speeds vary based on image size, batch type and PC configuration
